SiS468DN
Vishay Siliconix

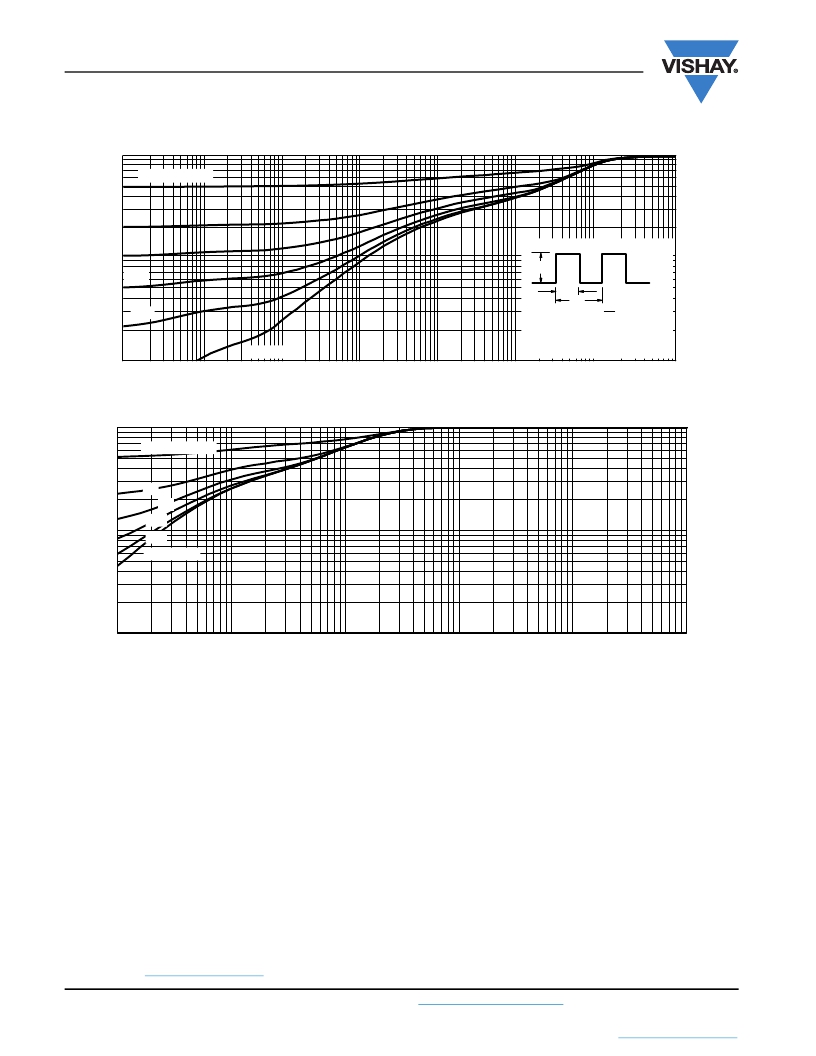

TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted)
1
Duty Cycle = 0.5
0.2
0.1
0.1
0.05
Notes:
P DM
t 1
t 1
t 2
0.02
t 2
1. Duty Cycle, D =
2. Per Unit Base = R thJA = 81 °C/W
3. T JM - T A = P DM Z thJA(t)
0.01
Single Pulse
4. Surface Mounted
10 -4
10 -3
10 -2
10 -1
1
10
100
1000
Square Wave Pulse Duration (s)
Normalized Thermal Transient Impedance, Junction-to-Ambient
1
Duty Cycle = 0.5
0.2
0.1
0.05
0.1
0.02
Single Pulse
0.01
0.0001
0.001
0.01
0.1
1
10
Square Wave Pulse Duration (s)
Normalized Thermal Transient Impedance, Junction-to-Case
